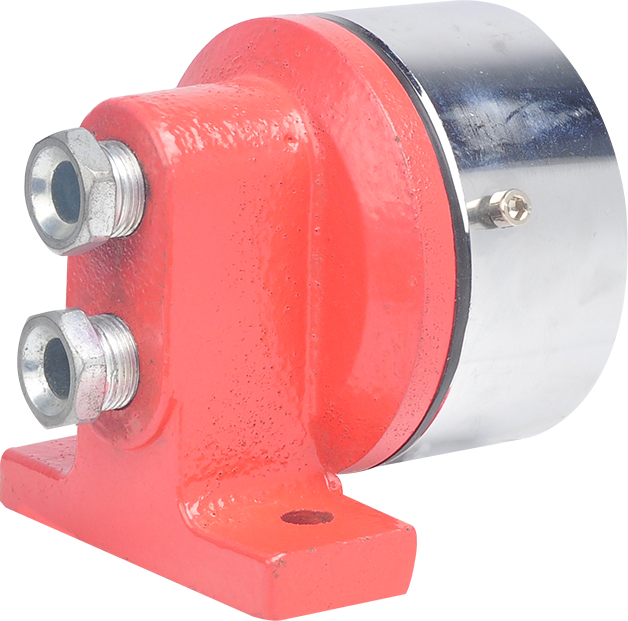

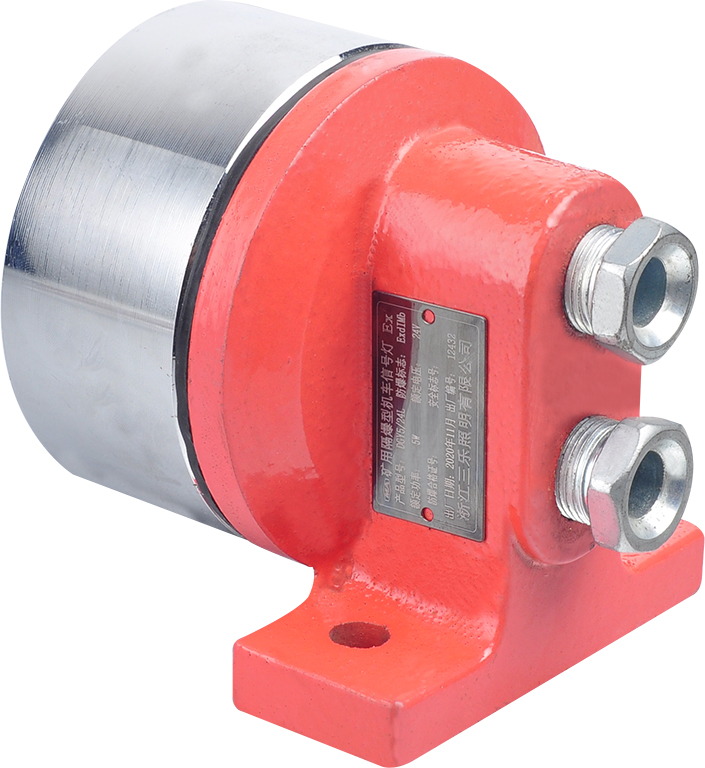

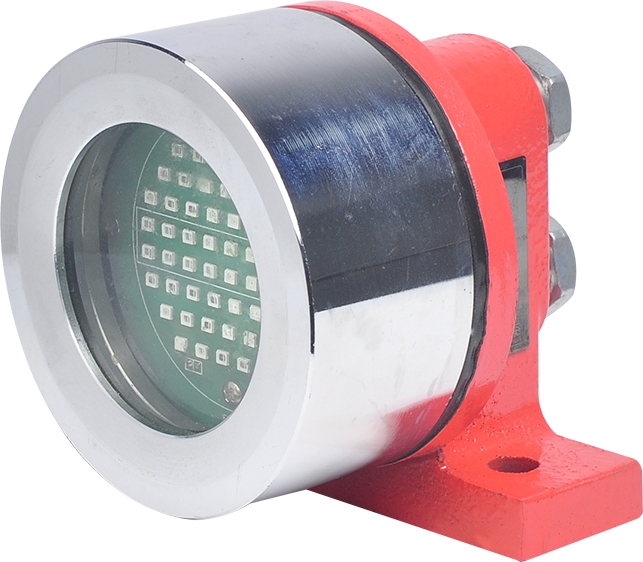

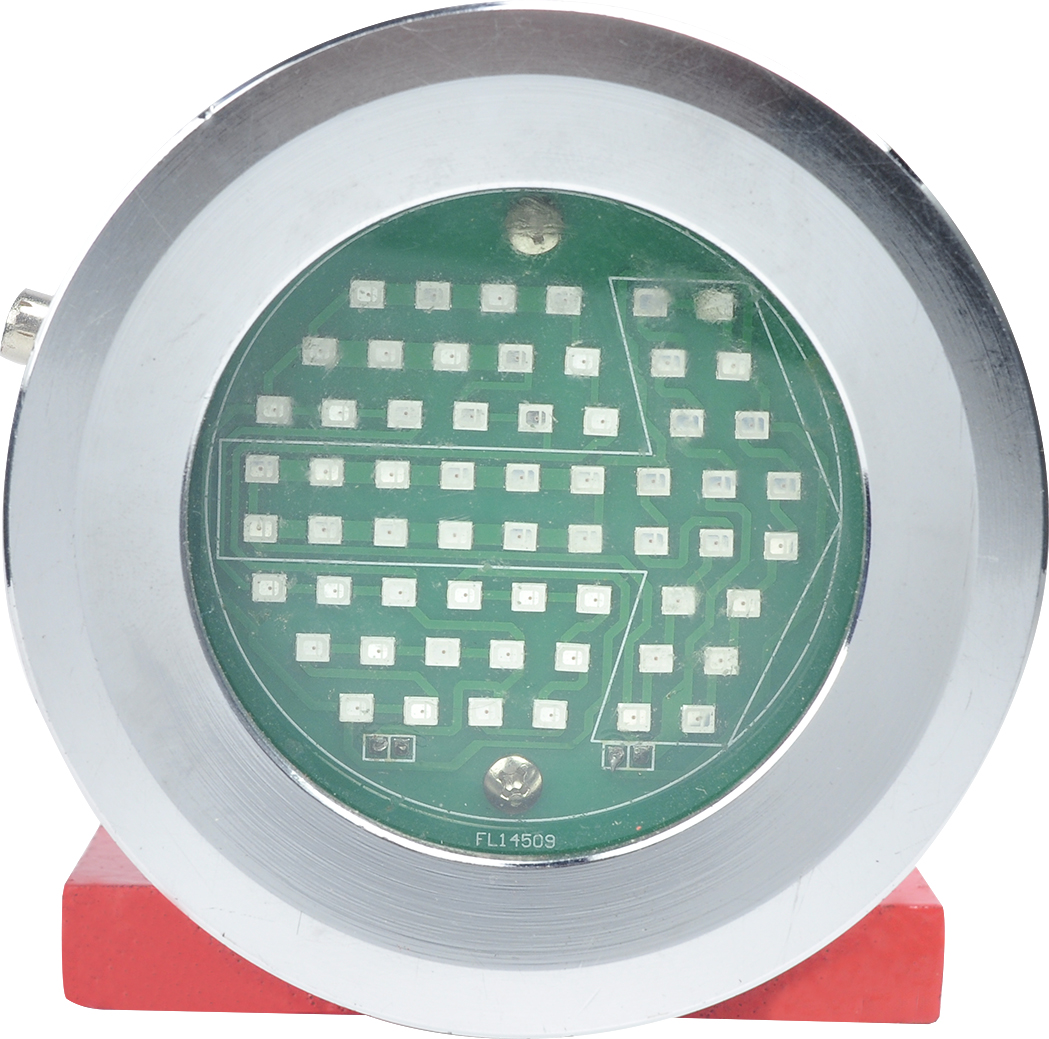

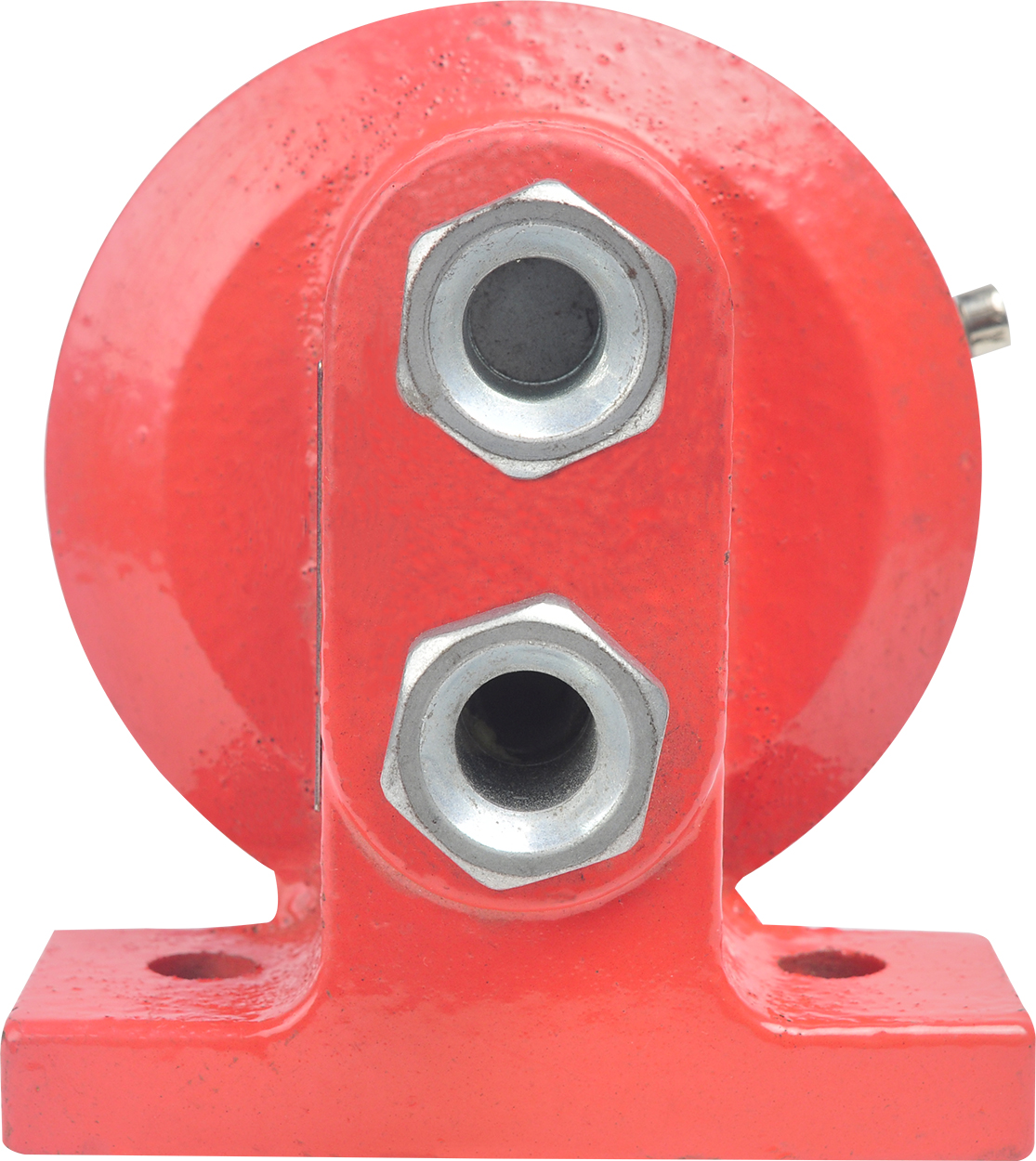

產品中心 礦用防爆燈 礦用隔爆型機車燈系列 DGY5/24LX(A)礦用隔爆型LED信號燈
|
產品型號 |
DGY5/24LX(A) |
|
防爆標志 |
Ex db| Mb |
|
額定電壓 |
DC20-30V |
|
防護等級 |
IP66 |
|
反腐等級 |
WF2 |
|
進線口螺紋 |
M20X1.5 |
|
引入電纜 |
Φ10-14mm |
|
工作溫度 |
-20°c-40°c |
|

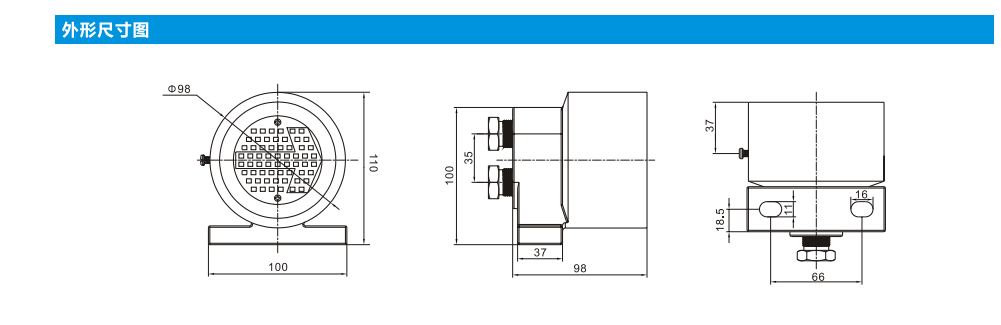

外形尺寸 |
100×110×98mm |
|
凈重 |
2.43kg |
|
數量 |
8pcs/箱 |
|
執行標準 |
GB/T3836.1-2021 GB/T3836.2-2021 MT221-2005 |
|
產品型號 |
|
|
|
|
|
|
|
|
|
|
|
DGE9/24L(A) |
|
DGE9/36L(A) |
|
DGE18/24L(A) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
光源 |
|
LED |
|
LED |
|
LED |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
光通量 |
|
990LM |
|
990LM |
|
1980LM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
額定功率 |
|
9W |
|
9W |
|
18W |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
波長 |
|
紅光620 黃光580 |
|
紅光620 黃光580 |
|
紅光620 黃光580 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
光照度 |
|
3LX |
|
3LX |
|
3LX |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
