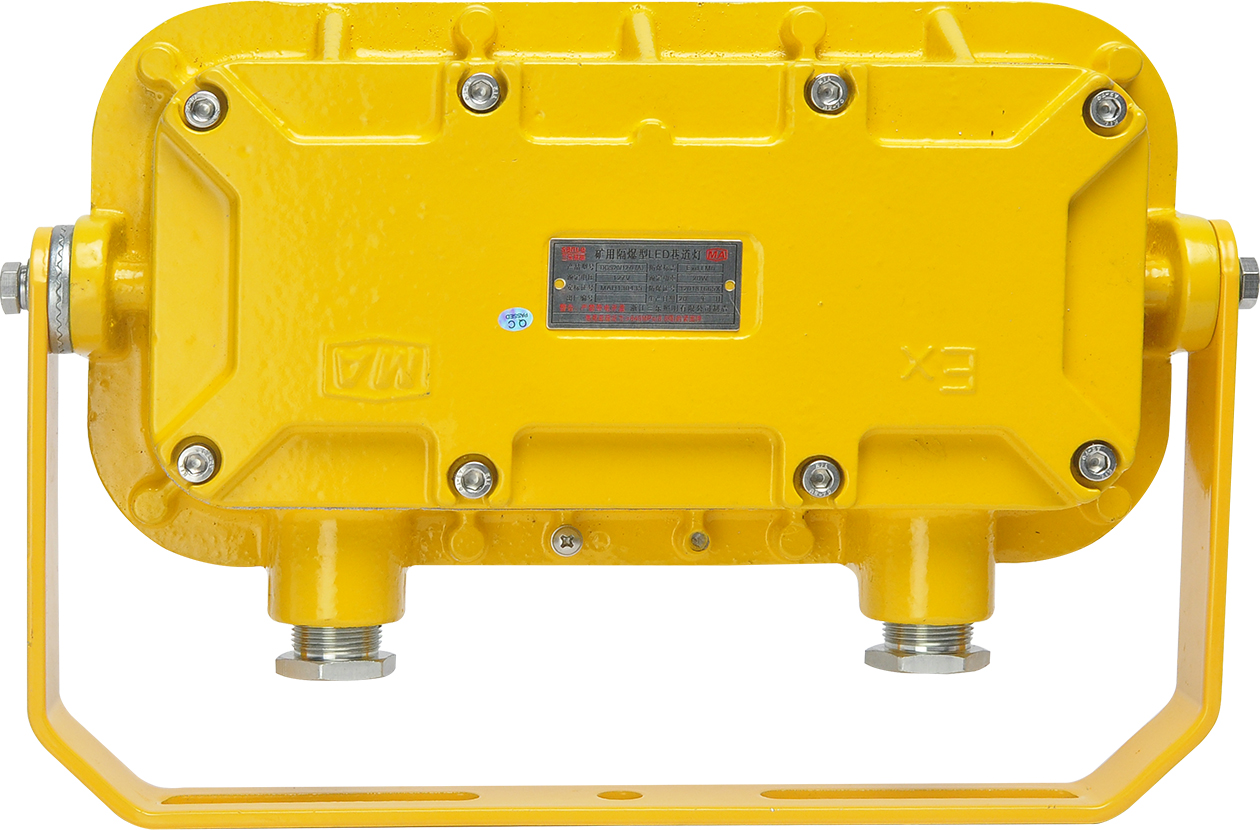

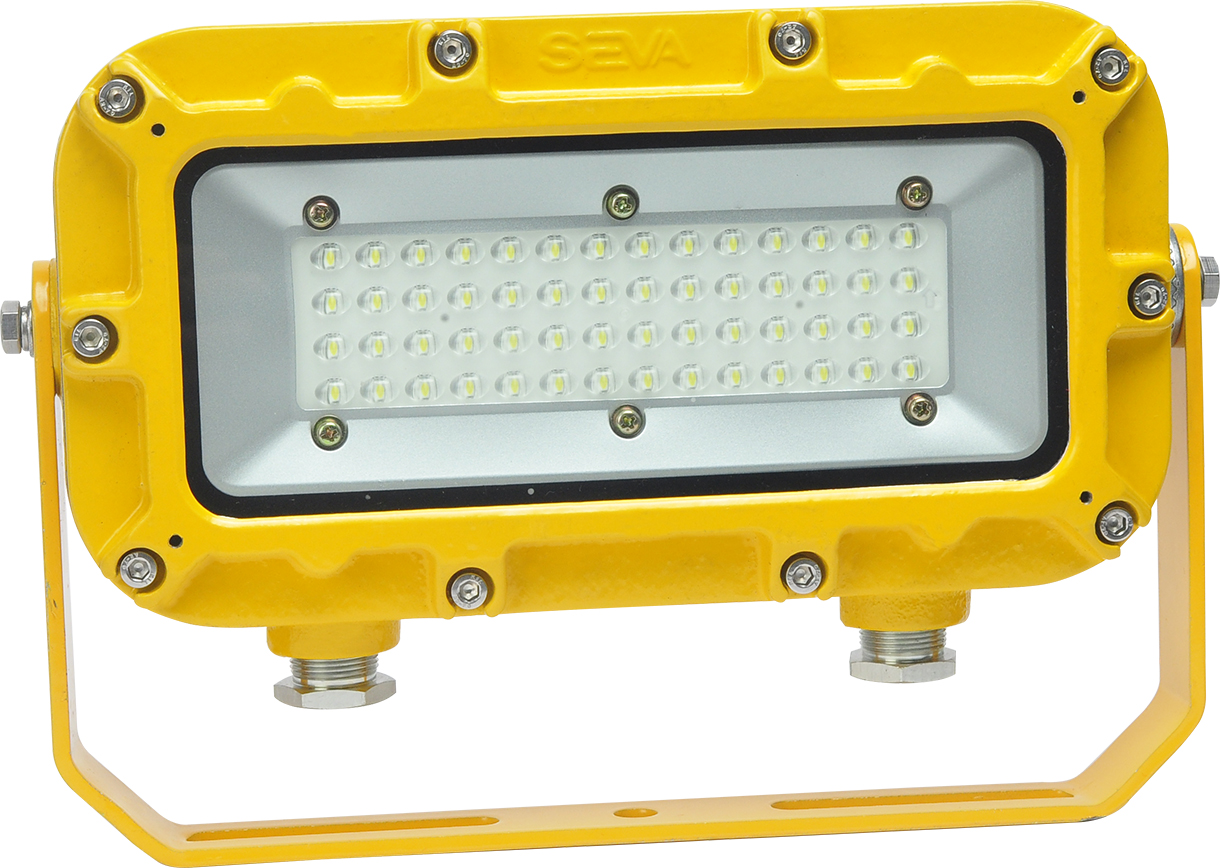

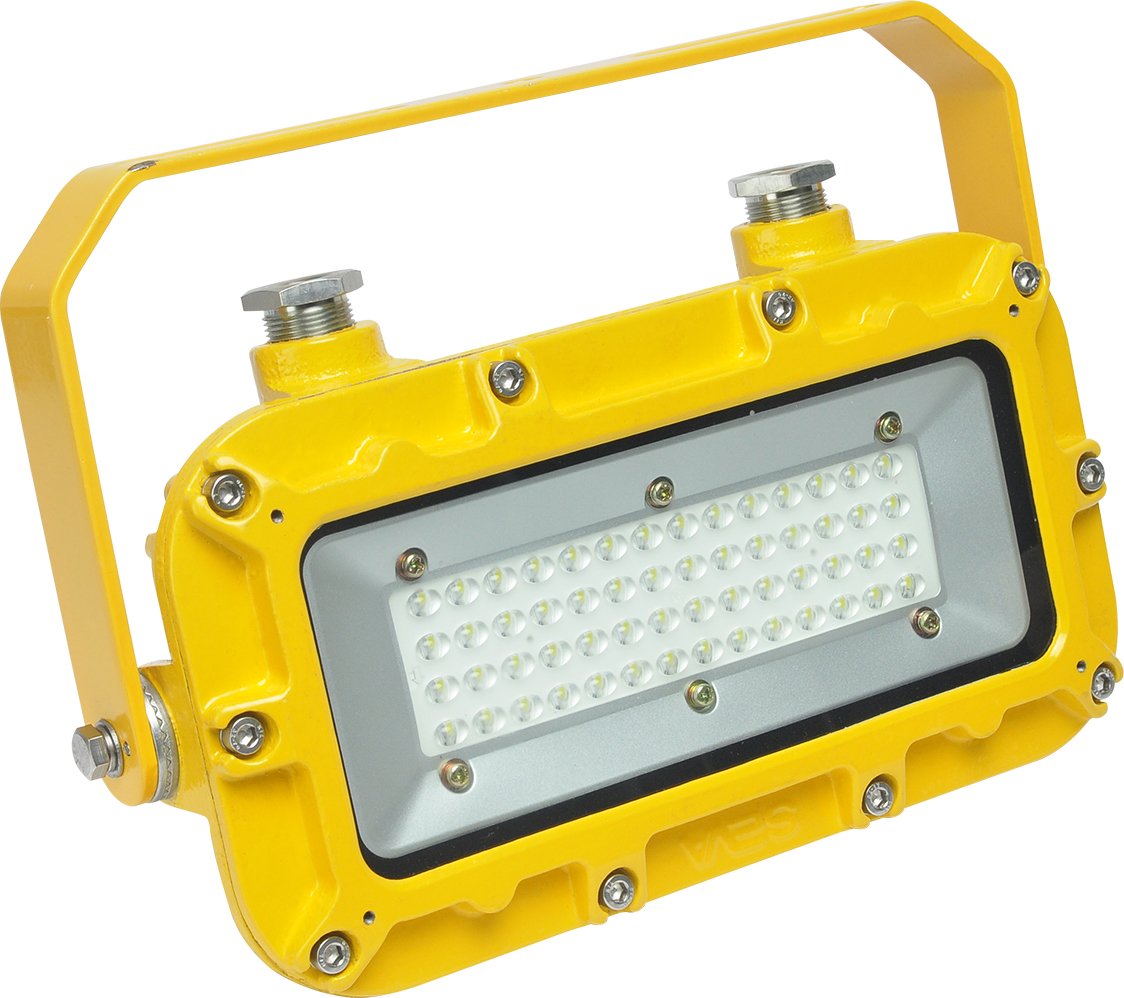

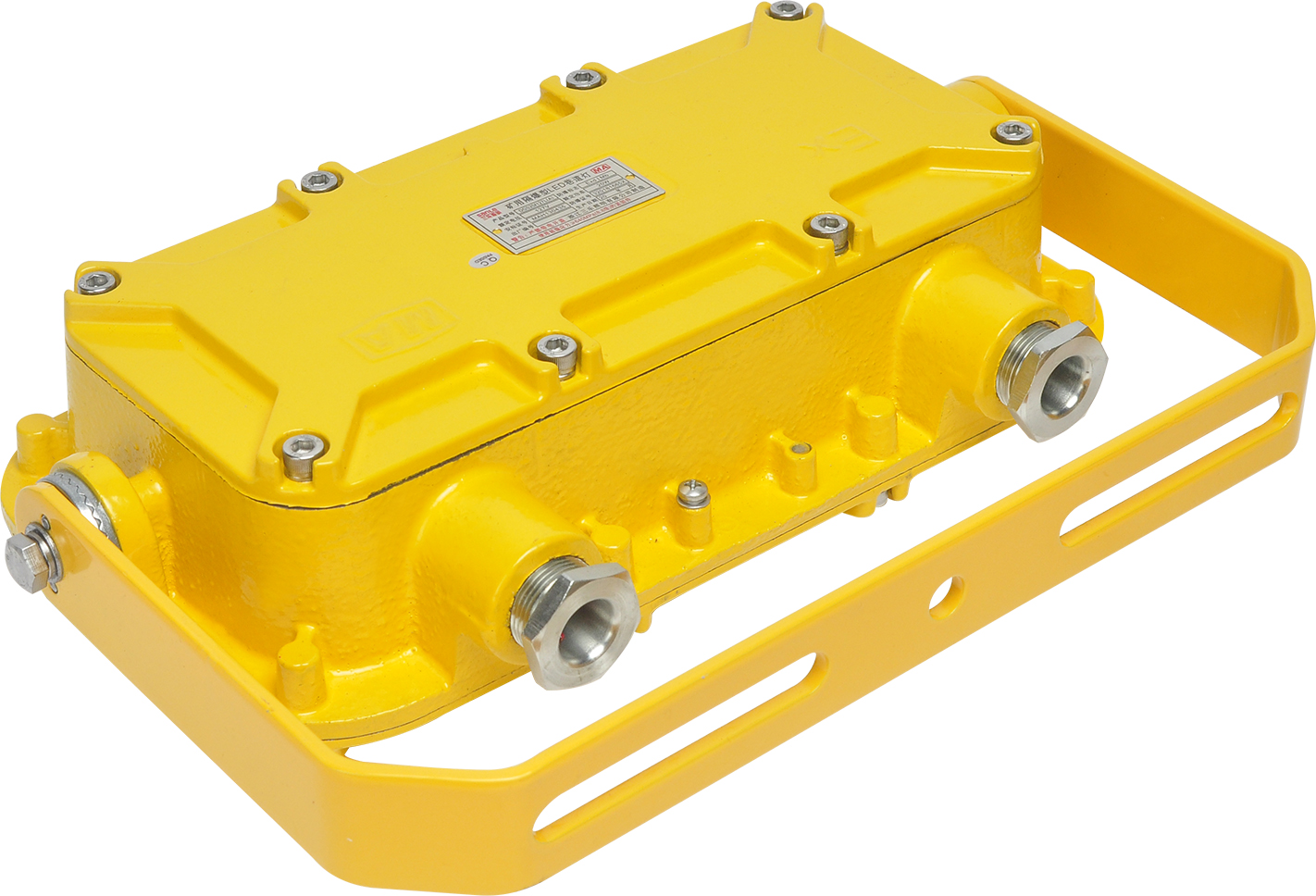

產品中心 礦用防爆燈 礦用隔爆型支架燈系列 DGC45/127L(A)礦用隔爆型LED支架燈
|
產品型號 |
DGC45/127L(A) |
|
防爆標志 |
Ex db| Mb |
|
額定電壓 |
AC85-265V |
|
防護等級 |
IP66 |
|
反腐等級 |
WF2 |
|
進線口螺紋 |
M26X1.5 |
|
引入電纜 |
Φ10-16mm |
|
工作溫度 |
-20°c-40°c |
|
外形尺寸 |
320×192×89mm |
|
凈重 |
9.5kg |
|
數量 |
2pcs/箱 |
|
執行標準 |
GB/T3836.1-2021 GB/T3836.2-2021 GB/T3836.4-2021 MT221-2005 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
產品型號 |
|
DGC36/127L(A) |
|
DGC40/127L(A) |
|
DGC41/127L(A) |
|
DGC45/127L(A) |
DGC50/127L(A) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
光源 |
|
LED |
|
LED |
|
LED |
|
LED |
LED |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
光通量 |
|
3960LM |
|
4400LM |
|
4510LM |
|
4950LM |
5500LM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
額定功率 |
|
36W |
|
40W |
|
41W |
|
45W |
50W |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
色溫 |
|
6000-6500K |
|
6000-6500K |
|
6000-6500K |
|
6000-6500K |
6000-6500K |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
光照度 |
|
165LX |
|
180LX |
|
185LX |
|
205LX |
246LX |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
